MC-CH01 Honeycomb Non-precious Metal VOC Removal Catalyst Introduction

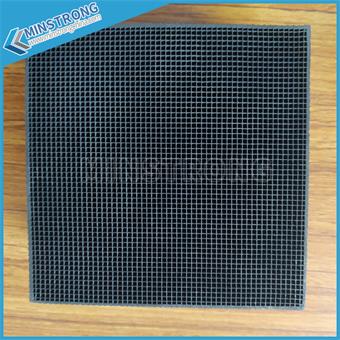

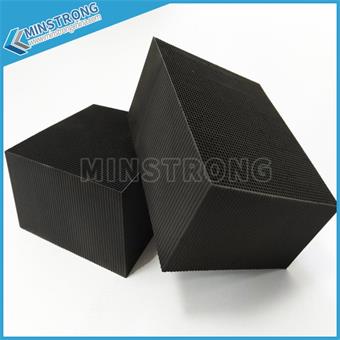

MSCB-02 catalyst is a highly active non-precious metal catalyst produced by manganese (Mn), copper （Cu） and various rare earth metals and cordierite honeycomb ceramics as a carrier.

MC-CH01 Honeycomb Non-precious Metal VOC Removal Catalyst advantages

Not easy to fall off: the active ingredient is fused with the carrier into one

Low-temperature catalytic oxidation: 200 ~ 450 ℃

High conversion rate :> 95%, no secondary pollution

High content of active ingredients: 50 ~ 60g / L active loading

Good stability: Service life> 8500 hours

Cost-effective: Wide range of raw materials and low prices

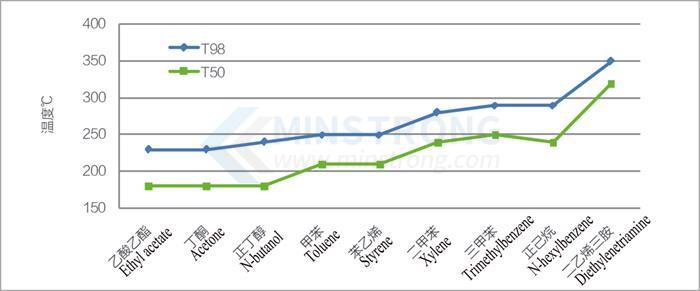

MC-CH01Honeycomb Non-precious Metal VOC Removal Catalyst Processing efficiency

Test conditions

space velocity 15000h-1

catalyst loading 10ml

tested on a GC-5890N meteorological chromatograph

gas concentration 1000ppm

T50: temperature at 50% gas removal rate;

T98: temperature at 98% gas removal rate
